Custom And Pre-Designed Structures

Whether you want to design your own custom structure, or have a tried and true product line built for you, we can bring any structure to life.

For over a decade, Secure-Rite has been pouring our passion into building custom projects that stand the test of time. Secure-Rite Structures is Certified to CSA A277 by QAI Laboratories, and we stand toe-to-toe with the select few companies in Canada that share this endorsement.

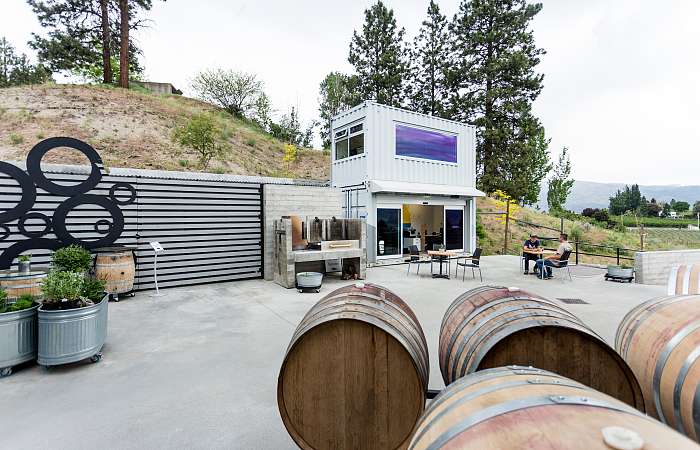

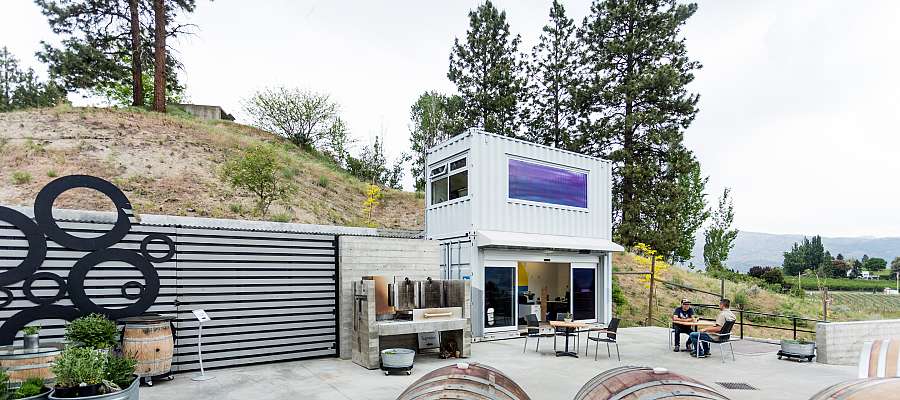

Using containers as our building blocks, we design, fabricate, and finish structures that protect you and your equipment. Secure-Rite Structures provides custom solutions for site office buildings, washrooms, pop-up bistros and eateries, modular event spaces, escape rooms, and much more!

View Gallery

Product Lines

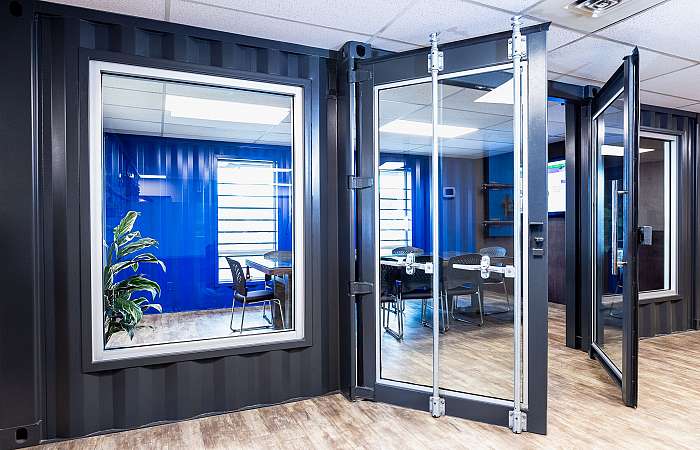

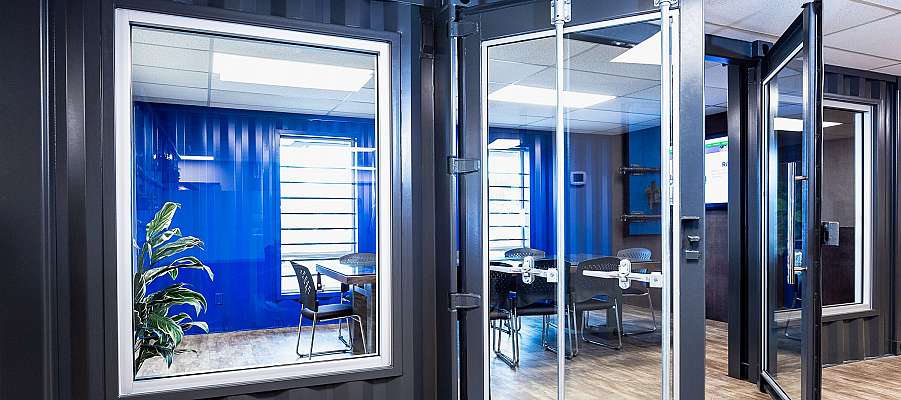

Offices

Comfortable and functional work spaces are important for your workers' safety and productivity. From our secure steel shell, through our technology-filled walls, right into our durable, sound-dampened interiors, we build every office with the user in mind.

Features

Interior walls finished with vinyl wrapped plywood panels
Varnished, Standard 1-1/16” hardwood container floor
High efficiency insulation; spray foam throughout
100amp panel ready for hookup via external junction box
Interior Lighting – (2x) High output warm LED overhead lights
Exterior Lighting – (1x) light with photocell outside entrance door
(1x) In-Line smoke detector
Data hookups and electrical outlets included
Air conditioning – One 6000BTU thru-wall mounted unit with A/C Bracket
Heating – (2x) in-wall 2000W electric heaters, each with built-in thermostatic control

Pricing

Option	Size	Price
20'	20'L x 8'W x 8.5'H	$24,500.00
40'	40’L x 8’W x 8.5’H	CONTACT

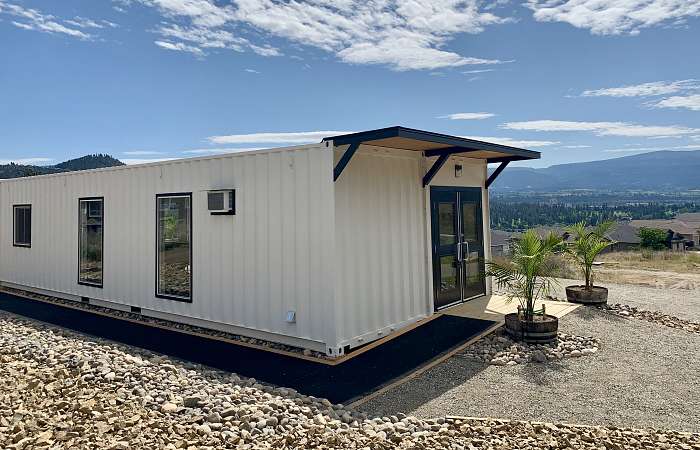

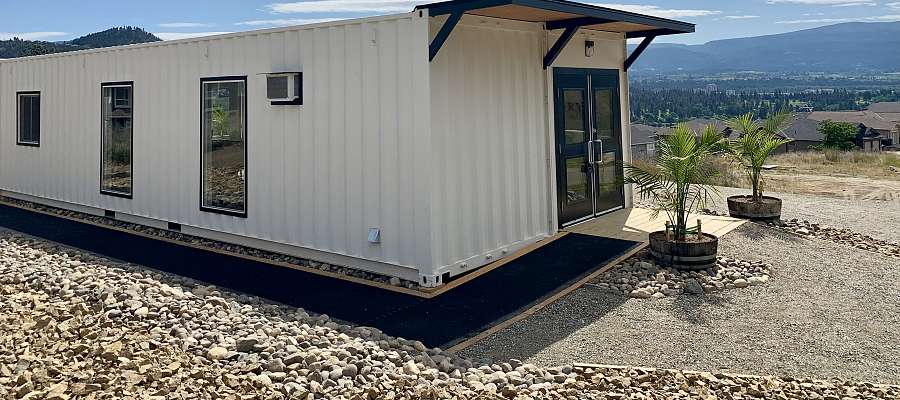

Sales Centres

Pop-up offices and sales centres are an ideal fit for a sales job that is constantly moving and ever-evolving. From our secure steel shell, through our technology-filled walls, right into our durable, sound-dampened interiors, we have spent over a decade customizing and building every office with the client’s brand and purpose in mind. Whether you’re in the market for a design that is simple and functional, or sophisticated and chic, our sales centres are designed with a clean aesthetic, modern finishes, and are sure to wow the next client that comes through your door.

Features

CSA-A277 approved building, with easy relocatability.
New, steel shipping container with cargo doors at both ends.
Energy efficient office areas that meet or exceed building code requirements.
Beautifully glazed door & windows.
Hardwood flooring.
Vinyl-wrapped plywood walls that are bright, durable, and easy to clean.
Electrical package ready for hookup.
Single module and double module options available.

Pricing

Option	Size	Price
Single Module	40’L X 8’W X 8.5’H	$79,000/single module (may vary based on specifications)
Double Module	40’L X 16’W X 8.5’H	$149,000/double module (may vary based on specifications)

E-Houses

Electrical Houses (or E-Houses) are customized enclosures that integrate flexible electrical, control, and safety components for even the most rugged work settings. These modified units are ideal for jobs that require rugged, long-lasting protection for equipment.
E-Houses are commonly used in industrial, infrastructure, and environmental industries.

Features

Basic enclosure and CSA-A277 approved solutions available.
New, steel high cube shipping container with cargo doors at one end, and steel personnel door with a metal door frame, check-chain, and weather stripping on the long side.
Rockwool insulation, providing resistance to fire, water, mildew, and excellent sound absorbency.
Closed cell polyurethane spray foam insulation for the underside.
Metal lined interior and floors (fire-resistant plywood option available).

Pricing

Option	Size	Price
20’ Unit	20’L X 8’W X 9.5’H	Please Contact
40’ Unit	40’L X 8’W X 9.5’H	Please Contact

Washrooms

These modified container units make for a secure and tidy washroom space for campgrounds, municipal parks, events, and more!

Features

Structure: 10’ New (one-trip) steel shipping container, Size: 10’L x 8’W x 8.5’H, Color: ANY CUSTOM COLOR (TBD by Client)
Engineering: CSA-A277 inspected and approved industrial relocatable structure, CWB/CSA-A660 Approved Steel Building System
Sections: Accessible Washroom, Approx. 90’’x 80’’, Mechanical/Storage Room, Approx. 12’’x80’’
Paint: Post-fabrication custom paint job with primer and direct-to-metal paint (Color to be confirmed with client), Three coats of Anti-Graffiti Coating, Ten Year Warranty for three coats
Entryway: Customized-for-Washroom Communicating Door, Exterior Slab: 36’’ wide, insulated steel personnel door with “storeroom” lockable handle (frame cut to accept electric strike and FOB access), Spring loaded hinges to close while not in use
Functional cargo doors allow access to mechanical/storage room
72’’x12’’ Transom window
Insulation: All walls, ceiling, plumbing wall and underside. Spray foam throughout.
HVAC: (2) 1500W Ceiling Mounted Heaters, (1) Ceiling Mounted Bathroom Fan, (2) Thermostats

Micro-Suite

The Micro-Suite is 150 sq. ft of living space that is adaptable and flexible - creating a fluid environment where multi-functional design allows you to quickly exchange your sleeping quarters for your workstation and living area. This accommodation unit is meant to bend and fold to the user’s needs throughout the day.

This modified 20' High Cube Container is built to CSA-A277 Code in our Certified Factory and is designed to meet building code anywhere in Canada.

Features

Main Room (Approx. 13’x7’)
Washroom (Approx. 4’6’’x4’)
Entryways: 36” wide, insulated entry door with commercial grade-1 lever handle and deadbolt hardware, overhead drip edge, weather-stripping, draft stop, and threshold.
Windows: Energy code certified
Interior: Standard white vinyl-wrapped plywood with modern trimmings throughout, divider walls, and pocket door
High efficiency insulation; spray foam
HVAC: Fresh air energy recovery ventilator, 2000W In-wall electric heater, baseboard heater, AC Unit (6,000BTU)
Flooring: Commercial vinyl, faux wood-plank
Electrical Package: 100A, 120/240v Single phase panel with exterior junction box
Bedroom Package: Wall bed with upper cabinets (Couch when bed is in upright position, Queen size mattress)
Kitchen Package: Lower Cabinets with Countertop, Hidden folding table, Laminate Countertop, Upper Cabinets, In-counter stove, Mini-fridge, Over-the-range Microwave with exhaust fan

Pricing

Option	Size	Price
20'	20'L x 8'W x 9.5'H	$84,900.00
40'	40'L x 8'W x 9.5'H	$124,900.00

Basic Modifications

Personnel Door

Option	Size	Price
Personnel Door	36" W	$2,048.00/package + tax

36” wide, insulated steel personnel door with commercial grade lever handle and deadbolt hardware, overhead drip edge, weather-stripping, draft stop, threshold, and check chain.

Window

Option	Size	Price
Window	42" x 39"	$1,736/package + tax

Side-slide opening 42”x39” window, white vinyl, energy star zone 2, installed within powder-coated (brown) steel frame with overhead drip edge. Comes WITH protective steel grating. (Option: NO protective steel grating)

Roll Door

Option	Size	Price
Roll Door	8'	$2,541.00/door + tax

8’ Wide Roll-up door installed inside 2”x2” Square tube steel frame, with overhead drip edge, custom checkerplate threshold, side whisker-seals and overhead draft seal, slide-lock for two padlocks.

6067 Insta-Vent

Option	Size	Price
6067 Insta-Vent	9”W x 6”T	$195.00/vent + tax

Exterior hooded vent, with a perforated air-flow area 9”W x 6”T. Powder-coated, designed to be installed along the top frame of the container Or flat section of cargo doors.

Exterior Paint

Option	Size	Price
Exterior Paint - 1 colour	10' unit	$2,995.00/package + tax
Exterior Paint - 1 colour	20' unit	$3,995.00/package + tax
Exterior Paint - 1 colour	40' unit	$5,995.00/package + tax

(New/one-trip containers only)
Exterior prepared, primed, and 2 coats of direct-to-metal paint.

Fire Marshall’s Vent Package

Option	Size	Price
Fire Marshall’s Vent Package	20'	$1,995/package + tax
Fire Marshall’s Vent Package	40'	$2,995/package + tax

Supply & install all parts and consumables for the following:
Fabricate and weld in metal ring for install of whirlybird roof vent (for cyclonic aire movement), paint all bare metal to match existing container. Cut opening and supply/install 12"x12" louver (static) vent in lowest section of left-hand cargo door.

Condensation Coat & Spray Foam Packages

10', 20', 40' Condensation Coat Spray Foam Package

Option	Price
10', 1/2" Spray foam ceiling only	$595/package + tax
20', 1/2" Spray foam ceiling only	$795/package + tax
40', 1/2" Spray foam ceiling only	$1,195/package + tax

10', 8', 6' Comprehensive Spray Foam Package

Option	Price
1" R6	$1,064/package + tax
2" R12	$1,838/package + tax
3" R18	$2,613/package + tax

20' or 20'HC Comprehensive Spray Foam Package

Option	Price
1" R6	$1,878/package + tax
2" R12	$3,321/package + tax
3" R18	$4,765/package + tax

40', 40'HC, 45'HC Comprehensive Spray Foam Package

Option	Price
1" R6	$3,341/package + tax
2" R12	$5,983/package + tax
3" R18	$8,624/package + tax

Includes all internal walls and ceiling, underside, and cargo doors, which remain operable.
